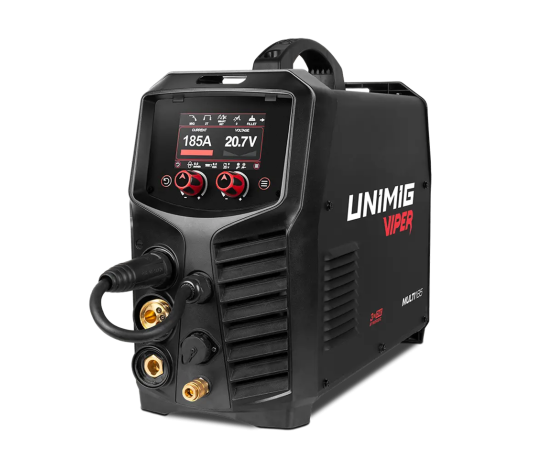

VIPER MULTI 185 MIG/TIG/MMA Welder

Now with single pulse MIG, the VIPER MULTI 185 is the perfect multi-process machine for home repairs, hobby projects, and light fabrication. Compact and versatile, it offers MIG, TIG, and Stick welding capability in one reliable unit.

Key Features

• Single pulse MIG programs for smoother results with less spatter
• High-frequency DC TIG for clean arc starts without contamination
• MIG Smart-Set weld modes for quick synergic setups
• Runs on a standard 10 amp plug – no special power required
• 4.3" colour LCD with intuitive controls
• Smart Fan technology reduces noise, power use, and dust intake
• Power Factor Correction for efficiency and voltage fluctuation stability
• Job memory to save and recall up to 10 weld setups
• Generator compatible (minimum 10 kVA recommended)
• Optional foot control ready for TIG welding

MIG Specifications

• Current Range: 30–185A
• Duty Cycle (40°C): 10% @ 185A, 60% @ 77A, 100% @ 60A
• Wire Size Range: 0.6–1.0 mm
• Wire Spool Size: 1 kg / 5 kg
• Welding Thickness Range: 1–10 mm

TIG Specifications

• Function Type: DC High-Frequency TIG
• Current Range: 20–185A
• Duty Cycle (40°C): 10% @ 185A, 60% @ 77A, 100% @ 60A
• Welding Thickness Range: 1–6 mm

MMA (Stick) Specifications

• Current Range: 20–180A
• Duty Cycle (40°C): 10% @ 180A, 60% @ 75A, 100% @ 60A
• Electrode Range: 2.5–4.0 mm
• Welding Thickness Range: 2–10 mm

General Technical Data

• Input Voltage: 240V Single Phase (50/60 Hz)
• Supply Plug: 10A
• Ieff: 10.0 A
• Imax: 31.0 A
• No Load Voltage: 67.0 V
• Protection Class: IP21S
• Insulation Class: H
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Dimensions: 523 × 214 × 388 mm
• Weight: 13.5 kg

What’s Included

• VIPER MULTI 185 Welder
• 3m M26 MIG Torch
• 3m Twist Lock Electrode Holder
• 3m 300A Earth Clamp & Lead
• Argon Regulator
• 1.8m Quick-Connect Gas Hose
• 9-to-9 Pin TIG Torch Adapter
• Operating Manual
• V Groove, F Groove, and U Groove Drive Rollers

Warranty

3 Years (Manufacturer’s Warranty)
