Unimig Razor Multi 250 Compact

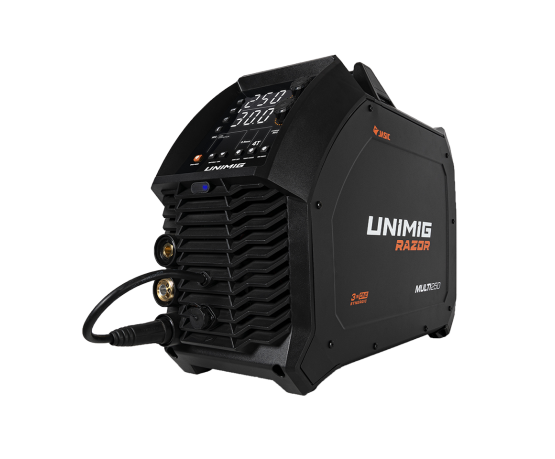

UNIMIG RAZOR MULTI 250 Welder – U11009K

The UNIMIG RAZOR MULTI 250 is a single-phase, three-in-one inverter welder supporting MIG, Lift Arc DC TIG and MMA welding. Its synergic MIG programs, HD backlit control panel and four-geared wire drive make it suitable for fabrication, maintenance and repair work in workshops or on site.

Features & Benefits

• MIG, Lift Arc DC TIG and MMA process capability
• Synergic MIG programs simplify setup using wire type, wire size, gas and material thickness
• Supports gas-shielded and gasless MIG wire
• Four-geared wire drive provides steady wire feeding, including with longer torch leads
• HD backlit display provides a clear view of welding parameters
• Digital MIG torch allows live amperage and voltage adjustments from the torch
• Spool gun compatible for feeding softer wires such as aluminium
• Adjustable Hot Start and Arc Force with built-in Anti-Stick for MMA welding
• Smart fan and active airflow system help manage cooling and reduce dust intake

Typical Applications

• General steel and stainless steel fabrication
• Workshop maintenance and repair work
• Gasless welding for outdoor and site applications
• Aluminium MIG welding when correctly configured

Package Includes

• RAZOR MULTI 250 welder
• 4 metre M24 digital MIG torch
• 4 metre twist-lock electrode holder
• 4 metre 300 amp earth clamp and lead
• Twin-gauge argon regulator
• 1.8 metre quick-connect gas hose
• 0.8–0.9 mm V-groove roller
• 0.8–0.9 mm F-groove roller
• 1.0–1.2 mm U-groove roller
• Operating manual

Specifications

• Input voltage: 240 V single-phase
• Supply plug: 15 amp
• MIG output duty cycle at 40°C: 250 A at 20%, 144 A at 60%, 112 A at 100%
• TIG output duty cycle at 40°C: 250 A at 20%, 144 A at 60%, 112 A at 100%
• MMA output duty cycle at 40°C: 220 A at 20%, 127 A at 60%, 98 A at 100%
• Minimum generator capacity: 11 kVA
• Protection class: IP23S
• Standard: AS 60974.1
• Dimensions: 700 x 280 x 511 mm
• Weight: 25.5 kg
