UNIMIG Razor 200 Pulse MIG/TIG/STICK Welder

UNIMIG RAZOR 200 PULSE MIG/TIG/STICK Welder – U11003K

The UNIMIG RAZOR 200 PULSE is a professional 240V 15A multi-process welder combining gas and gasless MIG, single and double pulse MIG, high-frequency DC TIG, pulse TIG and STICK. Its 5-inch colour touchscreen, 100+ synergic programs, four-geared wire drive and digital MIG torch make advanced welding easier across mild steel, stainless steel, aluminium and other common fabrication materials.

Single and double pulse MIG provide excellent control over heat input and help minimise spatter while maintaining penetration. The machine is particularly well suited to aluminium MIG welding, thin materials and high-quality visible welds. Select the material, wire size, gas and thickness through the touchscreen, and the synergic program calculates the recommended settings.

The RAZOR 200 PULSE also includes high-frequency DC TIG, pulse TIG and STICK/MMA modes. The supplied DM26 Digital MIG Torch allows key settings to be changed at the torch, while the four-geared wire-drive system provides smooth and consistent feeding.

Please note: TIG is DC only and is not suitable for TIG welding aluminium. A compatible TIG torch is required and is not included.

Features

• MIG, gasless MIG, single pulse MIG, double pulse MIG, high-frequency DC TIG, pulse TIG and STICK/MMA
• 200A maximum MIG and TIG output
• Single and double pulse MIG reduces heat input and minimises spatter
• More than 100 synergic MIG programs
• 5-inch colour LCD touchscreen plus physical adjustment controls
• Digital DM26 MIG torch for on-torch parameter adjustment
• Four-geared wire-drive system for stable wire feeding
• Hot Start, Crater Fill, GLICK heat control, adjustable arc length and inductance control
• High-frequency DC TIG start with full-cycle TIG controls
• Arc Force, Hot Start, Anti-Stick, Power Limit and VRD for STICK welding
• 100-job memory
• 2T, 4T and spot trigger modes
• Internal spool light and drive-roll storage
• Compatible with optional digital spool gun, push-pull gun, TIG torch and wired foot pedal
• 240V single-phase input with fitted 15A plug
• IP23S protection rating
• Generator compatible with an 11kVA generator
• Compact 17kg design
• 3-year UNIMIG machine warranty, subject to UNIMIG's warranty terms

Best Used For

• Aluminium MIG and pulse MIG welding
• Mild steel and stainless steel fabrication
• Automotive, marine, trailer and light engineering work
• Thin materials where heat control is important
• High-quality visible welds with reduced post-weld clean-up
• Workshop and mobile repair work

Recommended Setup

• 240V single-phase 15A outlet
• Appropriate shielding gas for the selected wire and material
• 0.6–1.2mm MIG wire
• 1kg or 5kg mild/stainless wire spools
• 0.5kg or 2kg aluminium wire spools
• Compatible TIG torch, tungsten, filler metal and argon required for DC TIG; TIG torch not included
• 2.5–4.0mm electrodes for STICK welding
• Minimum 11kVA generator when generator operation is required

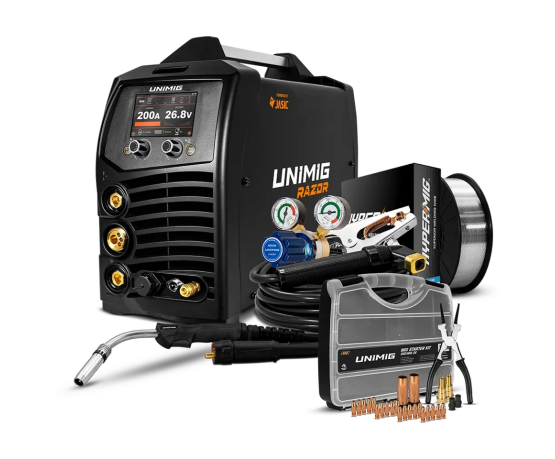

Package Inclusions

• 1 x RAZOR 200 PULSE MIG/TIG/STICK Welder
• 1 x 3m DM26 Digital MIG Torch fitted with a carbon-polyamide liner
• 1 x 3m Twist Lock Electrode Holder
• 1 x 3m 300A Earth Clamp and Lead
• 1 x Twin Gauge Argon Regulator
• 1 x 1.8m Quick-Connect Gas Hose
• 1 x Operating Manual
• 1 x 2kg spool of 1.2mm 5356 HYPERARC Aluminium Wire
• 1 x DM26 Consumable Starter Kit
