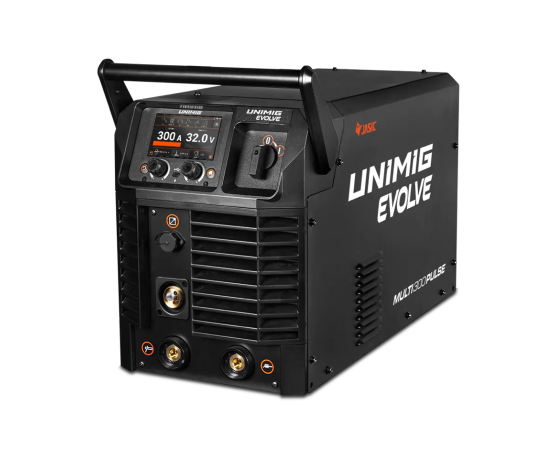

UNIMIG EVOLVE MULTI 300 PULSE M350 Package
The UNIMIG EVOLVE MULTI 300 PULSE is a professional dual-voltage MIG and STICK welding package designed for workshops that need precise pulse performance and room to expand. It delivers up to 250A from 240V single-phase power or the full 300A from 415V three-phase power.
Single and double pulse MIG help reduce heat input and spatter while producing smooth, consistent welds. More than 100 Smart-Set synergic programs simplify setup for the selected material, wire diameter, gas and thickness.
Key features
- Single and double pulse MIG.
- More than 100 Smart-Set synergic MIG programs.
- Dual-voltage 240V single-phase and 415V three-phase operation.
- Up to 250A on 240V or 300A on 415V.
- Hot Start and Crater Fill MIG controls.
- Push-pull ready for aluminium and other soft wires.
- Four-geared wire-feed system.
- Advanced IGBT inverter technology.
- MMA Arc Force, Anti-Stick and Hot Start.
- Optional AC/DC TIG, separate wire-feeder and water-cooler modules.
- 5-year UNIMIG warranty, subject to warranty terms.
Best used for
Aluminium pulse MIG, mild steel, stainless steel, silicon bronze, general fabrication, trailers, automotive and marine work, workshop production and visible welds where a clean, consistent finish matters.
Package inclusions
- EVOLVE MULTI 300 PULSE power source.
- 3m M350 MIG torch.
- M350 consumable kit.
- 3m 500A earth clamp and lead.
- Twin-gauge argon regulator.
- 1.8m quick-connect gas hose.
- Operating manual.
- 2 x 1.0–1.2mm U-groove rollers.
- 2 x 0.9–1.2mm V-groove rollers.
- 2 x 1.2–1.6mm V-groove rollers.
Specifications
| SKU | U11130 |
|---|---|
| Primary input | 240V single-phase / 415V three-phase |
| Supply plug | Supplied unplugged; 32A recommended |
| MIG current | 20–250A on 240V / 20–300A on 415V |
| MIG duty cycle | 240V: 15% @ 250A, 60% @ 125A, 100% @ 97A; 415V: 60% @ 300A, 100% @ 232A |
| MIG wire | 0.6–1.2mm |
| Spool capacity | 5kg / 15kg |
| MMA current | 20–200A on 240V / 20–300A on 415V |
| MMA duty cycle | 240V: 20% @ 200A, 60% @ 115A, 100% @ 89A; 415V: 60% @ 300A, 100% @ 232A |
| Electrode range | 1.6–4.0mm |
| Protection class | IP23S |
| Minimum generator | 13kVA on 240V / 23kVA on 415V |
| Dimensions | 820 x 332 x 462mm |
| Weight | 44kg |
| Warranty | 5 years, subject to UNIMIG terms |
Important: the standard U11130 package performs MIG and STICK/MMA welding. TIG welding requires the optional EVOLVE AC/DC TIG Module U11147.
| Brand | UNIMIG |
|---|---|
| Weight | 44.000000 |
| Hide Request Quote Form | No |
| Power Supply | 415V |
| Spool Size | 15kg |
| Supply Plug | 5 |
| Dimensions | 820 x 332 x 462mm |
| Duty Cycle | MIG 60%@300A; MMA 60%@300A (415V) |
| Input Current | 14.2A |
| Min Amperage | 20 |
| Max Amperage | 300 |
| Protection Class | IP23S |
