ProArc TR-0103 Welding Rotator 1000kg 240V

ProArc TR-0103 Welding Rotator 1000kg 240V

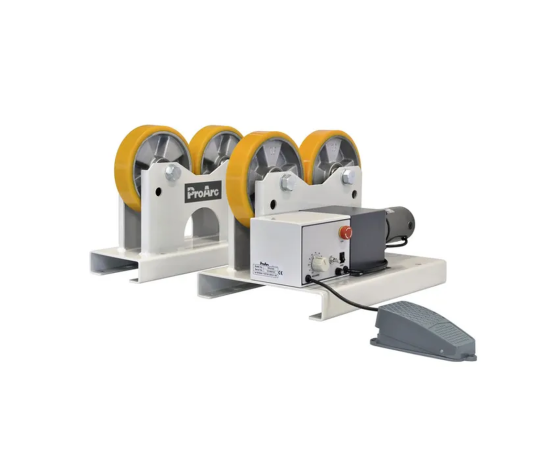

The ProArc TR-0103 is a compact welding rotator designed for controlled rotation of pipes, tanks and cylindrical vessels during welding and fabrication. Supplied as a powered drive and idler set, it supports loads up to 1,000kg and accommodates workpiece diameters from 20mm to 800mm. Variable rotation speed helps operators position and turn components at a suitable rate for consistent circumferential welding.

Features & Benefits

• 1,000kg combined load capacity across the drive and idler units
• Variable speed range from 80 to 1,600mm/min
• Quick roller adjustment for accurate workpiece centring
• Metal rollers with polyurethane contact surfaces
• Solid-state drive controls with dynamic braking
• High-frequency protected for use around welding equipment
• Foot pedal provides convenient on/off rotation control

Typical Applications

• Circumferential welding of pipes and cylindrical components
• Tank and pressure vessel fabrication
• Workshop positioning and rotation of round workpieces
• Production, repair and general fabrication work

Package Includes

• Powered drive unit
• Idler unit
• On/off foot pedal

Specifications

• Model: TR-0103
• Input power: 100–240V AC, single phase, 50/60Hz
• Drive motor: 1/12hp
• Load capacity: 1,000kg
• Workpiece diameter range: 20–800mm
• Speed range: 80–1,600mm/min
• Roller diameter: 200mm
• Roller width: 50mm
• Roller type: Polyurethane
• Net weight: 54kg combined
