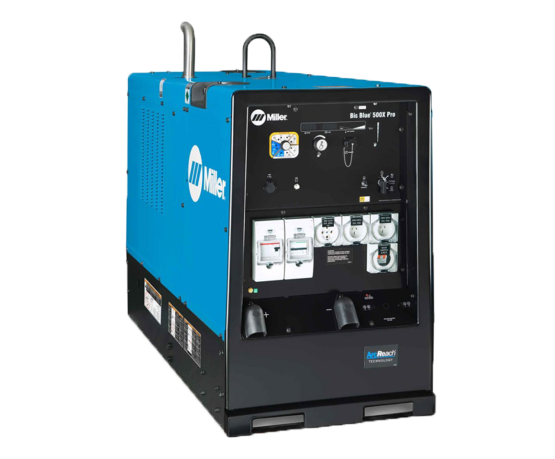

Miller Big Blue 500X Pro with Arc Reach Diesel Engine Driven Welder
Brand
Miller
SKU
MR907788-1
Pack Size
1
ArcReach welding technology minimises the non-value added time spent walking to and from the power source - and maximises arc-on time, weld quality and jobsite safety.
/ea
Call us for our latest price!
1800 935 378
Or fill out the form below with your details below.
Big Blue 500X Pro with ArcReach®
High-Output Power. Industrial-Grade Versatility.
The Big Blue 500X Pro with ArcReach is built for the toughest jobs. For remote sites, heavy fabrication, or critical structural work where downtime isn’t an option, it delivers up to 500 A of welding power, multi-process flexibility, rugged reliability, and safety-minded controls.
Why It Stands Out
-
Massive Weld Output
100% duty cycle at 400 A / 36 V, 60% at 450 A / 33 V, and 40% at 500 A / 30 V. High open-circuit voltage for reliable arc starts. -
Multi-Process Capability
Stick (SMAW), Pulsed MIG (GMAW-P), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW), RMD, and Air Carbon Arc (CAC-A). -
ArcReach® Productivity
Adjust parameters at the weld with compatible ArcReach feeders/remotes to reduce walking, improve safety, and increase arc-on time. Front-panel lockouts help prevent accidental changes on busy sites. -
Power & Efficiency
Generator power for tools and site needs: three-phase 380–415 V (approx. 21 kW peak / 15 kW continuous) and single-phase 240 V (approx. 4 kW continuous).
Ideal For
- Structural steel, heavy fabrication, pipeline and vessel work
- Maintenance & repair in remote or off-grid locations
- Construction and rental fleets needing robust, low-maintenance equipment
Key Specs at a Glance
| Output Range | 20–500 A |
|---|---|
| CV/DC (MIG/FCAW) Voltage | 14–50 V |
| Duty Cycle | 100% @ 400 A / 36 V; 60% @ 450 A / 33 V; 40% @ 500 A / 30 V |
| Generator Power | 3-phase 380–415 V: ~21 kW peak / 15 kW continuous; 1-phase 240 V: ~4 kW continuous |
What You Get
- Big Blue 500X Pro power source with ArcReach® capability
- Compatibility with ArcReach wire feeders/remotes and accessories
- Three-year manufacturer’s warranty
| Brand | Miller |
|---|---|
| Weight | 694.000000 |
| Power Supply | Engine Driven |
| Supply Plug | 5 |
| Dimensions | 1258mm x 724mm x 1654mm |
| Duty Cycle | 400 A at 36V 100% |
| Min Amperage | 20 |
| Max Amperage | 500 |
| Protection Class | IP23S |
