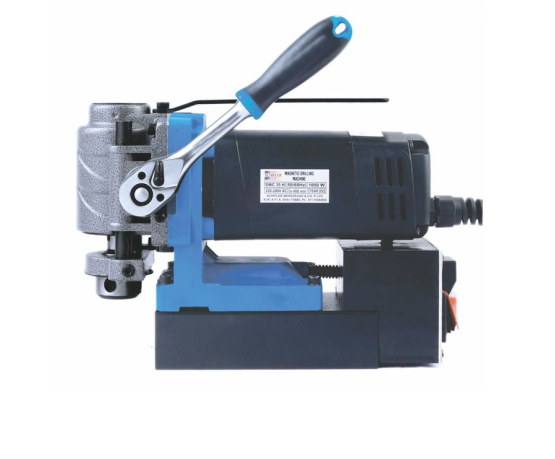

LOCH LX-35H Low Profile Magnetic Drill

LOCH LX-35H Magnetic Drilling Machine (35mm Low Profile)

The LOCH LX-35H is a compact, low-profile magnetic base drill designed for drilling in tight access areas on structural steel. Ideal for onsite fabrication and maintenance, it delivers reliable performance for annular (core) cutters and standard twist drills.

Key Features & Benefits:

• Low-profile design – suited to confined spaces and awkward positioning
• 35mm annular cutter capacity – efficient core drilling in steel
• Twist drilling capability – up to 13mm with standard drill bits
• 1100W motor – strong cutting performance and consistent power
• 19mm (3/4") Weldon shank compatibility – suits common annular cutters
• High-holding magnetic base – secure mounting on ferrous materials
• 220–240V supply – workshop and site friendly

Typical Applications:

• Structural steel fabrication and installation
• Workshop drilling and maintenance
• Onsite drilling where space is limited
• Core drilling for fasteners, brackets and plate work

Specifications (Summary):

• Max annular cutter capacity: 35mm
• Max twist drill capacity: 13mm
• Motor power: 1100W
• No-load speed: ~450rpm
• Shank type: 19mm (3/4") Weldon
• Power supply: 240V, 50/60Hz
• Weight: ~9.5kg
