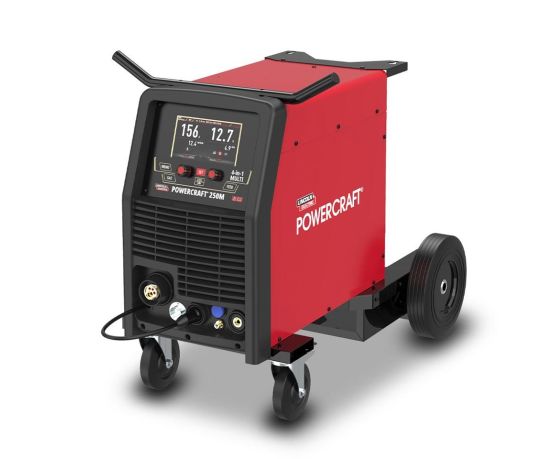

LINCOLN Powercraft® 250M 4-IN-1 Multi Process Welder

Lincoln Electric Powercraft 250M 4-in-1 Welder – K69089-1

The Lincoln Electric Powercraft 250M is a 240V single-phase inverter welder designed for MIG, flux-cored, AC/DC TIG and Stick welding. With a maximum output of 250 amps, synergic programs and an easy-to-use LCD interface, it suits fabrication, maintenance, automotive repair, rural work and general workshop applications.

Features & Benefits

• MIG, gasless flux-cored, Pulse AC/DC TIG, Lift DC TIG, High Frequency AC/DC TIG and Stick process capability
• EZYSET LCD interface with synergic one-knob control and fine voltage adjustment
• Synergic MIG programs for aluminium, mild steel, stainless steel and copper-silicon
• Adjustable TIG pulse, up slope, down slope and pre/post gas flow settings
• Stick functions include Hot Start, adjustable Arc Force and VRD
• Ten-program memory helps save commonly used welding settings
• Internal wire feeder accepts wire spools up to 16kg
• Spool gun ready and compatible with the optional PC4R four-roll wire feeder
• Built-in over-voltage, over-current and overload protection
• Large wheels, bull horn handles and gas bottle holder improve workshop mobility

Typical Applications

• General fabrication and sheet metal work
• Vehicle repair and maintenance
• Rural, workshop and architectural fabrication
• Stainless steel, carbon steel, alloy steel and aluminium welding

Specifications

• Input: 240V ±10%, single phase, 50/60Hz
• Output range: MIG 30–250A; TIG 10–250A; Stick 10–250A
• Duty cycle at 250A: MIG 18%; TIG 20%; Stick 15%
• Protection class: IP23S
• Dimensions: 950 x 540 x 840mm
• Machine weight: 53.5kg
• Generator compatible: Minimum 8kVA output

Package Includes

• Powercraft 250M power source
• 3m MIG gun and 4m TIG torch with handle-mounted remote control
• 3m electrode holder and 3m work return lead
• Flowmeter, gas hose and 3m input lead with 15A plug
• Solid wire drive rolls for 0.6/0.8mm and 0.8/0.9mm wire
• 0.9mm contact tip and instruction manual
