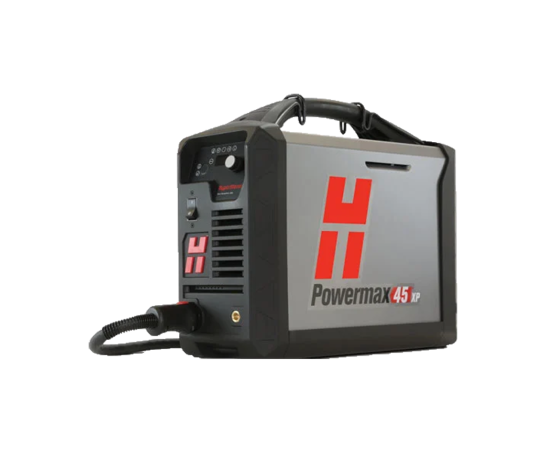

Hypertherm Powermax45® XP Plasma Cutter Package 230V 1-PH CE/CCC
Out of stock
Brand
Hypertherm
SKU
088130
Pack Size
1
/pkg
$5,422.09
Notify me when back in stock
Fill out your details below.
Package includes:
The Powermax45® XP plasma cutter provides a recommended cut capacity – up to 16 mm (5/8″) – as well as fast cut speeds, and automatic gas adjustment for quick, simple setup and operation. Duramax® Lock torches support handheld and mechanised cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.
Applications:
Features & Benefits:
- Hypertherm Powermax45® XP Plasma Cutter system
- 75° handheld torch
- Consumables
- 6.1m (20') lead
The Powermax45® XP plasma cutter provides a recommended cut capacity – up to 16 mm (5/8″) – as well as fast cut speeds, and automatic gas adjustment for quick, simple setup and operation. Duramax® Lock torches support handheld and mechanised cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.
Applications:
- Drag cutting
- Extended reach cutting
- Extended reach gouging
- Fine feature cutting
- Flush cutting
- Max control gouging
- Mechanised cutting
- Marking
- Precision gouging
Features & Benefits:
- Small size and light weight provide exceptional portability for a 16 mm (5/8") rated cutting system
- Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
- Smart Sense™ technology ensures that air pressure is always correctly set
- CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation
- A wide range of torch and consumable styles to choose from for both handheld and automated processes
- Extensive array of application capabilities via specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking
- Finish jobs faster, with cut speeds 1.5 times greater than oxyfuel on 6 mm (1/4") mild steel
- Superior cut and gouge quality reduces time for grinding and edge preparation
- New torch disable switch feature allows faster, easier changeout of consumables
- Duramax® Lock torches are designed for high-impact and heat resistance
- SpringStart™ technology ensures consistent starting and optimum torch performance
- Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments
- Plasma cutting efficiency is 11% better than its predecessor, enabling you to cut more steel with less power, in less time
- All plasma system components are recyclable
- 14% lighter than its predecessor and delivers more cutting power
| Brand | Hypertherm |
|---|---|
| Weight | 15.000000 |
| Power Supply | 240V |
| Dimensions | 442mm x 173mm x 357mm |
| Duty Cycle | 50% @ 45A, 230V, 1-PH; 60% @ 41A, 230V, 1-PH; 100% @ 32A, 230V, 1-PH |
| Input Current | 230V, 1-PH, 33A |
| Min Amperage | 45 |
| Max Amperage | 32 |
