ESAB Cutmaster 80 (25mm) w 6.1m SL60 Torch, 20-80A@40%, 415V/20A

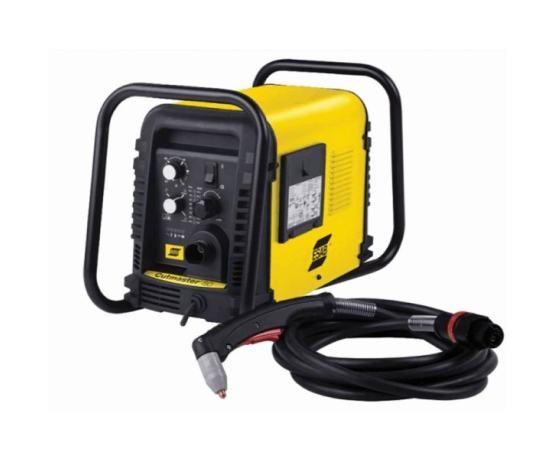

ESAB Cutmaster® 80 Plasma Cutter
The ESAB Cutmaster® 80 is a powerful and reliable industrial plasma cutting system designed for heavy fabrication, construction and workshop environments. Delivering up to 80 amps of cutting power, the Cutmaster 80 offers excellent performance on mild steel, stainless steel and aluminium while remaining compact and portable for site work.
Equipped with ESAB’s renowned SL60 1Torch®, the Cutmaster 80 provides exceptional arc stability, smooth cutting performance and long consumable life. The torch features an ergonomic design with easy trigger operation and flexible head options, making it comfortable for extended cutting tasks.
Despite its compact size, the Cutmaster 80 is capable of impressive cutting capacity, delivering clean, consistent cuts on thicker materials. Advanced features such as Auto-Restrike allow continuous cutting through mesh, expanded metal and grating without needing to re-trigger the torch, improving productivity in fabrication environments.
The rugged True-Guard™ roll bar construction protects the machine in demanding workshop or site conditions, while the quick-disconnect torch connection allows fast maintenance or conversion to a machine torch if required.
- 80A industrial plasma cutting output
- True Cut™ capacity up to 25mm
- Maximum severance capacity up to 38mm
- SL60 1Torch® for smooth cutting and long consumable life
- Auto-Restrike for cutting mesh and expanded metal
- True-Guard™ roll bar for protection in tough environments
- Quick-disconnect torch for easy maintenance or machine torch conversion
- Portable industrial design
Key Specifications
- Output Current: 20–80A
- Input Power: 400–415V, 3 Phase, 50/60Hz
- Duty Cycle: 80A @ 40%
- Recommended Cut Capacity: 25mm
- Maximum Severance Capacity: 38mm
- Gas Requirement: Compressed Air
- Air Pressure: approx. 5.2 bar
- Dimensions: 610 × 305 × 381 mm
- Weight: approx. 19.5 kg
The ESAB Cutmaster 80 is ideal for fabrication shops, maintenance crews, structural steel work and industrial cutting applications where reliable power and portability are essential.
| Brand | ESAB |
|---|---|
| Weight | 19.500000 |
| Hide Request Quote Form | No |
| Power Supply | 415V |
| Supply Plug | 20 Amp |
| Dimensions | 610 x 305 x 381 mm |
| Duty Cycle | 80A @ 40% |
