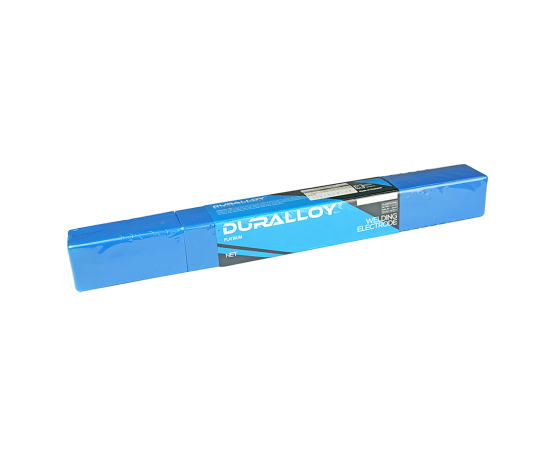

Duralloy Electrode 7024 5.0mm x 5kg

Duralloy 7024 Platinum E7024 Iron Powder Welding Electrodes – 5.0mm x 450mm, 5kg

Duralloy 7024 Platinum is a high-deposition, rutile iron powder electrode classified to AWS A5.1 E7024. It is designed for fast, efficient fillet and butt welding of mild steel in flat and horizontal positions using AC or DC negative polarity power sources.

Offering reliable arc initiation, excellent arc stability, low spatter and easy slag removal, Duralloy 7024 Platinum produces smooth weld beads with good edge wetting. It is particularly suited to long weld runs and heavy steel fabrication where high deposition rates and increased productivity are required.

Duralloy 7024 Platinum is comparable to other AWS E7024 electrodes, including CIGWELD Ferrocraft 22 and WIA Austarc 24. Always confirm applicable welding procedure, mechanical property and approval requirements before substitution.

Features & Benefits

• AWS A5.1 classification: E7024
• High iron powder content delivers excellent deposition rates
• Designed for fast down-hand and horizontal fillet welding
• Reliable arc initiation and stable welding performance
• Low-spatter operation reduces clean-up time
• Produces a smooth weld profile with good edge wetting
• Easy slag release supports faster weld finishing
• Suitable for AC or DC negative polarity power sources

Typical Applications

• Heavy fillet and butt welds
• Structural steel fabrication
• Beams, frames, tanks and heavy steel sections
• Long production welds
• Workshop and general fabrication

Specifications

• Brand: Duralloy
• Product: 7024 Platinum
• Classification: AWS A5.1 E7024
• Electrode type: Rutile iron powder
• Electrode diameter: 5.0mm
• Electrode length: 450mm
• Recommended current range: 180–220A
• Welding positions: Flat butt and horizontal fillet
• Power source: AC or DC negative polarity
• Pack weight: 5kg
