Duralloy 251 Multimig PFC Inverter with LCD display 15A 240V Package

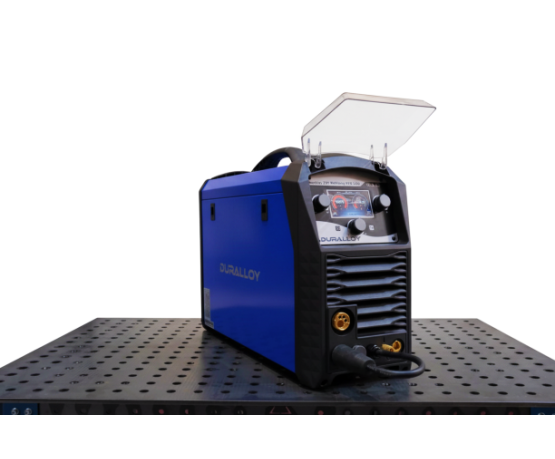

Duralloy 251 MultiMIG PFC Inverter Welding Machine with LCD Display Package
The Duralloy 251 MultiMIG PFC is a versatile inverter welding machine with MIG, TIG and MMA process capability. Designed for maintenance, fabrication, rural and on-site work, it provides up to 250 amps of welding output with an LCD display for clear adjustment and monitoring of welding parameters.
Features & Benefits
- PFC inverter technology helps maintain efficient and consistent welding output
- Supports MIG, TIG and MMA welding processes
- Heavy-duty four-roll wire feed system for reliable wire delivery
- Digital display shows welding current and voltage
- Waveform control helps maintain arc stability at lower current settings
- Built-in temperature, voltage and current protection
- Voltage Reduction Device for MMA welding
- Optional spool gun and switched TIG torch capability
- Suitable for use with a 12 kVA generator and extension leads up to 100 metres
Typical Applications
- General steel and stainless steel fabrication
- Maintenance and repair work
- Rural and agricultural applications
- Workshop and on-site fabrication
- Aluminium welding when correctly configured
Package Includes
- 251 MultiMIG PFC power source
- 3 metre MB24-style MIG torch
- 3 metre earth lead
- 3 metre MMA electrode lead
- 1.5 metre gas hose
- Argon regulator
- 0.9–1.2 mm flux-cored wire feed roller
- Owner’s manual
Specifications
- Input voltage: 90–275 VAC, 50/60 Hz
- Welding current range: 40–250 A
- Duty cycle at 40°C: 250 A at 15%, 125 A at 60%, 100 A at 100%
- Wire capacity: Mild steel 0.6–1.2 mm, stainless steel 0.8–1.2 mm and flux-cored 0.6–1.2 mm
- Cooling: Automatic fan
- Protection class: IP23S
- Dimensions: 618 x 240 x 445 mm
- Net weight: 23 kg
| Brand | Duralloy |
|---|---|
| Weight | 23.000000 |
| Hide Request Quote Form | No |
| Power Supply | 240V |
| Supply Plug | 15 Amp |
| Duty Cycle | 250 A at 15%, 125 A at 60%, 100 A at 100% |
| Input Current | 90–275 VAC, 50/60 Hz |
| Min Amperage | 40 |
| Max Amperage | 250 |
| Protection Class | IP23S |
