Cigweld BlueVenom XF210-6 MultiProcess Welder
CIGWELD BlueVENOM XF210-6 Multiprocess Welding Inverter – W1400210
The CIGWELD BlueVENOM XF210-6 is a 210A, 240V multiprocess welding inverter designed for professional workshop, fabrication and repair work. Its six process groups cover MIG, Pulse MIG, AC/DC TIG, Cold Weld TIG, Stick and Stick Pulse, providing a flexible setup for welding mild steel, stainless steel, aluminium and bronze.
Features & Benefits
- Runs from a single-phase 230V supply with a 15A plug
- Single and Double Pulse MIG modes support controlled welding and improved bead appearance
- AC/DC TIG capability suits both ferrous and non-ferrous materials
- Autoset and manual operating modes provide flexible setup control
- Eleven selectable AC TIG arc waveforms allow the arc characteristics to be adjusted for the job
- 5-inch full-colour LCD provides clear access to machine settings
- Sixty memory slots allow commonly used welding programs to be saved
- Stick mode includes a Voltage Reduction Device operating below 35V
- Generator compatible with an 8.5kVA recommended generator capacity
Typical Applications
- General steel and stainless steel fabrication
- Aluminium MIG and AC TIG welding
- Workshop production and maintenance
- Automotive, repair and custom fabrication work

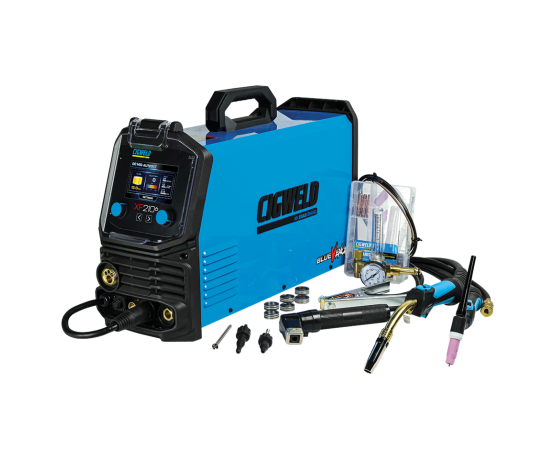

Package Includes
- BlueVENOM XF210-6 power source
- DGX24 4-button digital MIG gun, 3m
- Flame Series WP26F flex-head TIG torch, 4m
- 200A twist-lock electrode holder, 3m
- 300A earth clamp, 3m
- V-groove, knurled and U-groove feed rolls
- BlueJet regulator/flowmeter
- Quick-connect gas hose, 2m
Specifications
- Brand: CIGWELD
- Part Number: W1400210
- Power Supply: Single-phase, 230V ±10%, 15A plug
- MIG Current Range: 30–210A
- TIG Current Range: 10–210A
- Stick Current Range: 40–185A
- MIG Duty Cycle: 210A at 25%, 24.5V at 40°C
- TIG Duty Cycle: 210A at 35%, 18.4V at 40°C
- Stick Duty Cycle: 185A at 25%, 27.4V at 40°C
- Cooling Type: Air-cooled
- Protection Class: IP23S
- Power Source Weight: 22kg
- Standards: AS 60974.1:2020, EN 60974-10:2021, IEC 60974-2:2019 and IEC 60974-5:2019
| Brand | CIGWELD |
|---|---|
| Weight | 22.000000 |
| Hide Request Quote Form | No |
| Power Supply | 240V |
| Supply Plug | 15 Amp |
| Dimensions | 72 x 38 x 43cm |
| Duty Cycle | 210A at 25%, 24.5V at 40°C |
| Min Amperage | 10 |
| Max Amperage | 210 |
| Protection Class | IP23S |
