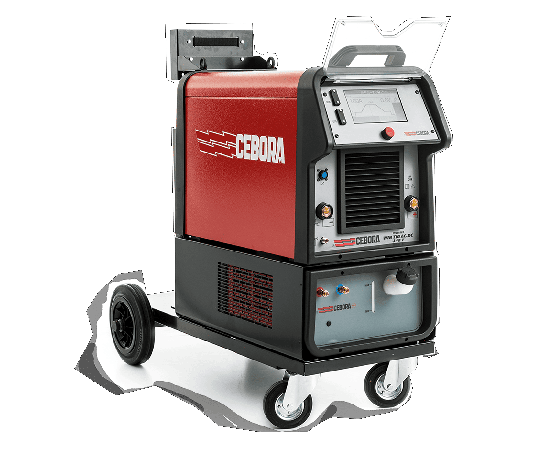

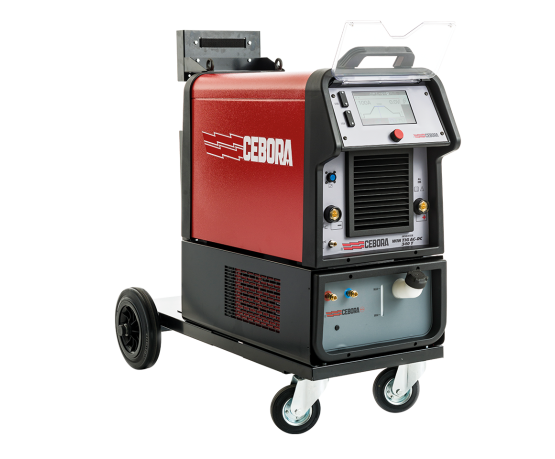

Cebora WIN TIG AC/DC 340T

Inverter three-phase ( 400 V 50/60 Hz ± 15%) power source for AC-DC TIG and MMA. High Frequency Ignition.

Features & Benefits:

• 7” LCD touchscreen Display
• Equipped with transportation trolley and cooling unit
• EVO LIFTfunction allowsto place the electrode in the exact position avoiding the piece oxidation and the heat control
• EVO START function in order to optimize edge junction
• APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
• Intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range
• Pulse functionto be adjusted up to 2,5 kHz
• eXtra Pulse (XP) function: avery high frequence pulse that works on small thicknesses where the transferred heat must be minimal
• Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses.
• Advanced users: software package for the advanced users management [Art. 809]
• Quality control: software package for the quality control [Art. 273]
• Production mode: software package for production management [Art. 817]
• JOB function which makes it possible to save up to 99 welding programs
• Minimum DC current equal to 3 A
• In AC TIG mode, tit is possible to independently adjust the width and duration of the penetration and cleaning of half-waves
• AC+DC TIG process for aluminium welding and its alloys
• AC frequency from 50 to 200 Hz
• In AC mode, possibility of selecting several combinations of the three waveforms (square, triangular, sine-wave)
• AC MMA welding process suitable for welding electrodes on magnetized sheet metal, prevents the "magnetic blow" in the welding of iron boxes and it is usually employed in maintenance work
• VRD function: reduces the vacuum voltage ensuring the use of the welding machine in environments with high electrical risk thus offering maximum safety to the operator
• Easily removable cooling grille
• Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
• Remote control mode from personal computer, tablet or smartphone
• Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices

Package Includes:

• Cebora 340T AC/DC HF Pulse TIG Water-Cooled
• BINZEL Abitig 18 Water-Cooled 8m 3550 1/4 Ceb Up/Down
• 6m 50mm2 Earth Clamp Cable 35/50m
• iOxygen Argon Regulator
