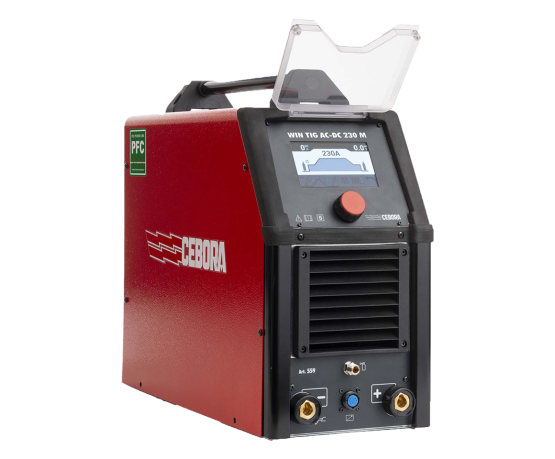

Cebora WIN TIG AC/DC 230M Power Source Package

WIN TIG AC-DC 230 M is an inverter single phase power source for TIG and MMA/SMAW welding

Features & Benefits:

• User-friendly 5" LCD touch screen display
• New cooling unit and trolley for transportation
• EVO LIFT function allows to place the electrode in the exact position avoiding the piece oxidation and the heat control
• EVO START function in order to optimize edge junction
• APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
• Intermittence pause time welding function which makes welding clearer with a time regulation in a second cents range
• DC TIG process with a minimum current of 3 A useful to carryover operations on metal mould edges.
• AC TIG process with a minimum current of 5 A that allows the transfer on very thin aluminum pieces , adjustable frequency from 50 to 200 Hz
• DC PULSE process as standard
• eXtra Pulse (XP) function: avery high frequence pulse that works on small thicknesses where the transferred heat must be minimal
• Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses
• VRD (Voltage Reduction Device) function: in MMA mode, enhances safety in dangerous environments.
• JOB function which makes it possible to save up to 9 welding programs
• USB port
• Prearranged for integration into simple automation via optional analog interface kit (Art. 456)

Package Includes:

• Cebora 230M AC/DC HF PULSE TIG
• BINZEL Abitig 26F 4m 3550 1/4 Ceb Up/Down
• 4m Earth Cable 25mm 35-50m
• iOxygen Argon Regulator
