Cebora SYNSTAR 330 TC Trolley & Water Cooler Package

The new SYNSTAR 330 TC is a multiprocess inverter three-phase synergic power source for MIG-TIG-MMA welding, with 4-roller Cebora wire feed unit.(Ø 30mm, 0,098 ft)

Factory fitted with current double level (MIG Short process), pulse and double pulse function, the SYNSTAR 330 TC has more than 70 welding programs available for Ø 0.8/0.9/1.0/1.2mm solid wire, as well as of stainless steel pulsed programs optimized for welding of thin thicknesses.

This power source can be equipped with 3 different types of torch:

Features & Benefits:

• 4 m air cooled push-pull torch art. 2003.00 (160A at 40%) ; the machine output current is automatically limited to 160A
• 3.5 m air cooled Cebora torch art. 1239 (380A at 60%)
• 3.5 m water cooled Cebora torch art. 1241 (380A at 60%)
• The LCD TOUCH SCREEN panel allows the operator to read and select process, wire and gas type, current and thickness, voltage and wire speed.
• The power source is complete with many functions adjustable from the TOUCH SCREEN control panel such as: Arc Length, short or pulsed welding process, 2 times / 4 times, Spot Time, Pause Time, Inductance, push-pull force, Burn Back, Soft Start, pre-gas and post gas.
• An optional cooling unit (art. 1681) is also available.
• It is a specially versatile power source, suitable for various applications, in particular for medium metal works, marked out by a low electrical input (PFC).
• Complies with EN 61000-3-12.

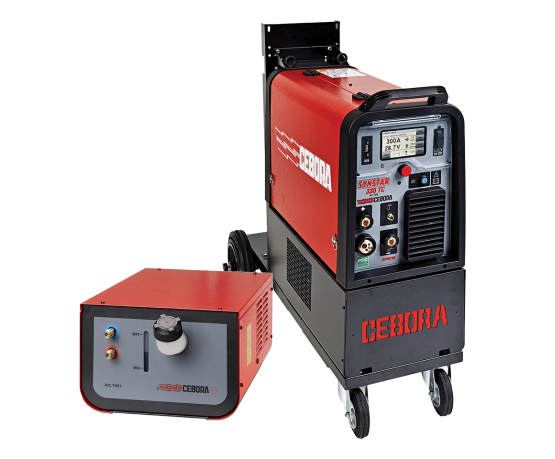

Package Includes:

• Cebora 330/TC Synergic Pulse MIG
• BINZEL MB EVO PRO 501D 4m Liquid Cooled MIG Torch
• Cebora GRV 14 Torch Water Cooler Unit
• iOxygen Argon Regulator
