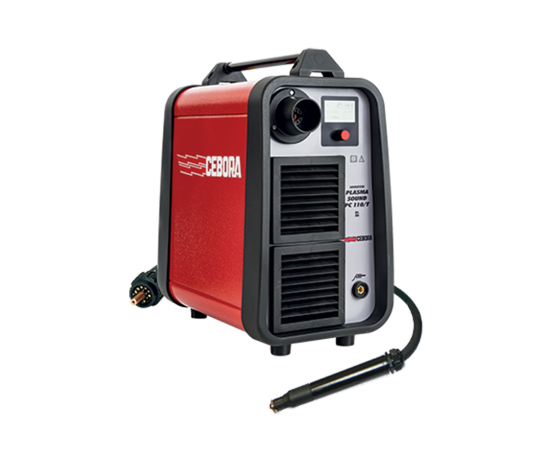

Cebora Sound PC110/T 415V Plasma Cutter
In stock
Brand
Cebora
SKU
336
Pack Size
1
/ea
RRP
$7,645.00
RRP
$8,679.00
Inverter three-phase multi-voltage power source with ‘On Air’ Ignition and Automatic detection of supply voltage.
Features & Benefits:
[Art. 336] Power source supplied with hand torch CEBORA CP 162C - 6 m, ground lead (6 m - 25 mm2) and clamp.
Package Includes:
Features & Benefits:
- User-friendly 5” LCD Control Display
- Synergic setting of the cutting parameters
- Automatic detection of worn out consumables
- Automatic detection of torch type and length
- “Pilot Self-Restart” function, to be selected from the panel, to interrupt and automatically reset the arc when cutting grids
- “Post-gas” function which, by cooling the torch after arc shut-off, reduces stress on the components and extends the life-span of consumables.
- Pilot arc operating mode, which makes it possible to work even on painted or coated metals
- Central torch adapter with safety protection, to avoid accidental contact with the power parts
- Suitable for Gouging (Capacità di 10,1 Kg/h)
- The power source can also be powered by motor-driven generators of appropriate power
[Art. 336] Power source supplied with hand torch CEBORA CP 162C - 6 m, ground lead (6 m - 25 mm2) and clamp.
Package Includes:
- Cebora Plasma Sound PC110/T 415V
- CP70C-1626 Hand Torch 6m
- Work return lead & clamp
- Industrial Air Regulator
| Brand | Cebora |
|---|---|
| Weight | 34.000000 |
| Power Supply | 415V |
| Supply Plug | 32 Amp |
| Dimensions | 297mm x 504mm x 558mm |
| Duty Cycle | 110A @ 50%; 95A @ 60%; 90A @ 100% |
| Input Current | 20.5kVA 50%; 16.5kVA 60%; 15.5 kVA 100% |
| Min Amperage | 90 |
| Max Amperage | 110 |
| Protection Class | IP23S |
