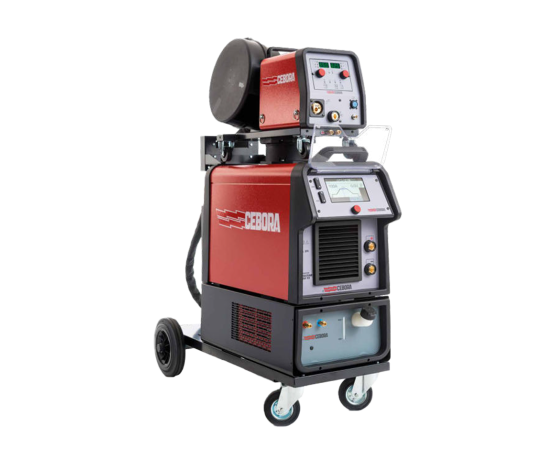

Cebora Kingstar 520 TS Trolley & Water Cooler Package
In stock
Brand
Cebora
SKU
374-PKG-1
$22,990.00
Kingstar 520 TS is a multiprocess inverter three-phase (400 V 50/60 Hz +15% / -20%) power source for MIG/MAG, DC TIG (with 'Cebora lift' ignition) and MMA welding. Equipped with devoted connection for a standard TIG torch and solenoid valve welding.
Features & Benefits:
- Cebora ROBOT aluminium 4-roller-wire feed unit (Ø 37 mm)
- Equipped with ground lead (3,5 m 70 mm²)
- Pre-arranged for cooling unit
- 7 "LCD touchscreen display
- Equipped with robot digital CANopen interface; Further digital or analogic interfaces on request
- SHORT HD (High Deposit) and MIG ROOT (First Pass) functions
- Pre-arranged for SRS standard welding process (Spatter Reduction System) in order to completely achieve spatters free welds and with reduced heat input [Art. 443]
- System calibration procedure which allowscomplete adjustment of all welding parameters and process variables (from the features of the welding torch, to the extension lead used between the transporting trolley and the power source);
- MIG upgrade [Art. 231.80]
- Double level function MIG upgrade [Art. 233.80]
- SWPS Package according to ISO 151612 which meets the qualification requirements of the procedures according to EN 1090-1; [Art. 808]
- Easily removable cooling grille
- Power source / wire feed connection with bayonet connector compliant with MIL-C-SS 116 standards that eliminates the problem of inserting and fixing the signal cable;
- USB port for software update
- Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
- Remote control mode from personal computer, tablet or smartphone
- Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices
Package Includes:
- Cebora Kingstar 520TS MIG
- Cebora Pulse Upgrade for Kingstar
- Cebora Double Pulse Upgrade for Kingstar
- Cebora Kingstar 10m Connection Cables
- BINZEL MB EVO PRO 501D 4m
- iOxygen Argon Regulator
| Brand | Cebora |
|---|---|
| Weight | 130.000000 |
| Power Supply | 415V |
| Spool Size | 15kg |
| Supply Plug | 32 Amp |
| Dimensions | 588mm x 1120mm x 1380mm |
| Duty Cycle | 500A 40%; 500A 40%; 470A 60%; 460A 60%; 440A 100%; 440A 100% |
| Input Current | 25.8kVA 40%; 26.1kVA 40%; 23.7kVA 60%; 23.2kVA 60%; 20.7kVA 100%; 22.13kVA 100% |
| Min Amperage | 440A |
| Max Amperage | 500A |
| Protection Class | IP23S |
