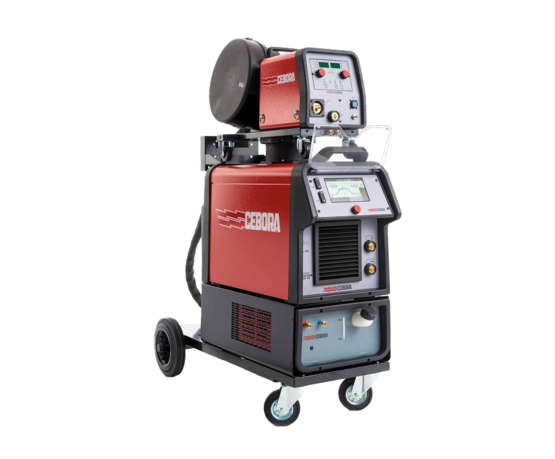

Cebora Kingstar 520 TS MIG Welding Machine

KINGSTAR 520 TS is a multiprocess inverter three-phase (400 V 50/60 Hz +15% / -20%) power source for MIG/MAG, DC TIG (with 'Cebora lift' ignition) and MMA welding. Equipped with devoted connection for a standard TIG torch and solenoid valve welding.

Features & Benefits:

• Cebora ROBOT aluminium 4-roller-wire feed unit (Ø 37 mm)
• Equipped with ground lead (3,5 m 70 mm²)
• Pre-arranged for cooling unit
• 7 "LCD touchscreen display
• Equipped with robot digital CANopen interface; Further digital or analogic interfaces on request
• SHORT HD (High Deposit) and MIG ROOT (First Pass) functions
• Pre-arranged for SRS standard welding process (Spatter Reduction System) in order to completely achieve spatters free welds and with reduced heat input [Art. 443]
• System calibration procedure which allowscomplete adjustment of all welding parameters and process variables (from the features of the welding torch, to the extension lead used between the transporting trolley and the power source);
• MIG upgrade [Art. 231.80]
• Double level function MIG upgrade [Art. 233.80]
• SWPS Package according to ISO 151612 which meets the qualification requirements of the procedures according to EN 1090-1; [Art. 808]
• Easily removable cooling grille
• Power source / wire feed connection with bayonet connector compliant with MIL-C-SS 116 standards that eliminates the problem of inserting and fixing the signal cable;
• USB port for software update
• Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
• Remote control mode from personal computer, tablet or smartphone
• Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices
