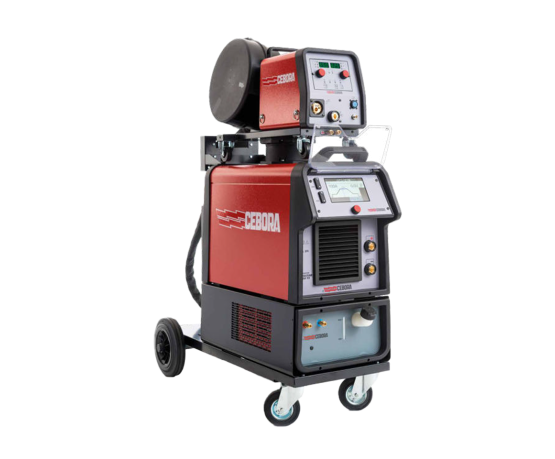

Cebora King Star 520 TS with Pulse/Double Pulse/3D Pulse/Full Tig
Brand
Cebora
SKU
374-3
Pack Size
1
/ea
Call us for our latest price!
1300 935 378
Or fill out the form below with your details below.
Features & Benefits:
- Cebora aluminium 4-roller-wire feed unit (Ø 37 mm)
- Equipped with transportation trolley, ground lead and clamp ( 3,5 m - 70 mm2 ) and cooling unit
- 7 "LCD touchscreen control panel
- MIG SHORT HD (High Deposit) and MIG ROOT (First Pass) functions
- Upgrade MIG Pulse and HD Pulse [Art. 231]
- Upgrade MIG double current level function [Art. 233]
- Upgrade MIG Double Pulse [Art. 231 + 233]
- Upgrade full TIG [Art. 804]
- Pre-arranged for MIG SRS standard welding process (Spatter Reduction System) in order to completely achieve spatters free welds and with reduced heat input [Art. 443]
- Upgrade MIG 3DPulse [Art. 814]
- Advanced users: software package for the advanced users management [Art. 809]
- Quality control: software package for the quality control [Art. 273]
- Production mode: software package for production management [Art. 817]
- SWPS Package according to ISO 151612 which meets the qualification requirements of the procedures according to EN 1090-1; [Art. 808]
- System calibration procedure which allows complete adjustment of all welding parameters and process variables (from the features of the welding torch, to the extension lead used between the transporting trolley and the power source);
- Easily removable cooling grille
- Power source / wire feed connection with bayonet connector compliant with MIL-C-SS 116 standards that eliminates the problem of inserting and fixing the signal cable;
- USB port for software update
- Compliant with Industry 4.0 (Integrated web server with LAN connection - 2 USB port that provides useful functions for remote service, diagnostics, information system, backup and data recovery)
- Remote control mode from personal computer, tablet or smartphone
- Equipped with digital ammeter / voltmeter with 1% accuracy and thermal protection devices
- MIG/MAG torch with "Euro" adapter + TIG torch adapter
- Second gas connection and additional dedicated solenoid valve when using the power source in TIG mode
- [Art. 374.55] Strong version on request with 50/60 Hz, (200) – 220 – 440 – 480 V, three-phase autotransformer
| Brand | Cebora |
|---|---|
| Weight | 95.000000 |
| Power Supply | 415V |
| Spool Size | 15kg |
| Supply Plug | 32 Amp |
| Dimensions | 588mm x 1120mm x 1380mm |
| Protection Class | IP23S |
