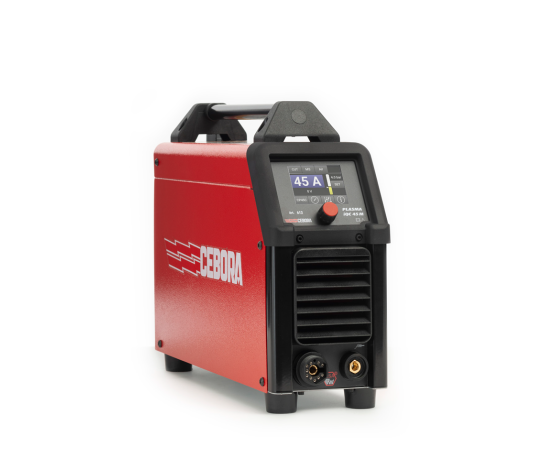

Cebora iQC 45M Plasma Cutter with 4m CP45 Torch & Earth lead 240v
Cebora iQC 45M Plasma Cutter with 4m CP45C Torch & Earth Lead 240V
The Cebora iQC 45M is a compact single-phase plasma cutter designed for accurate cutting and marking in workshops, fabrication environments and mobile repair applications. Silicon Carbide inverter technology helps deliver efficient performance with reduced heat dissipation, while the colour LCD display provides straightforward synergic parameter adjustment.
Features & Benefits
- 240V single-phase operation suits workshop and site use
- 5–45A output range for a variety of plasma cutting tasks
- Silicon Carbide inverter technology with greater than 90% efficiency
- 3.2-inch colour LCD display with synergic cutting parameter settings
- Automatic torch recognition with ESAFAST central connection
- Self Restart mode supports continuous cutting across mesh and perforated material
- Spot and Mark functions for marking and positioning work
- Suitable for cutting with compressed air or nitrogen
Cutting Capacity on Mild Steel
- Piercing capacity: 10mm
- Quality cutting thickness: 12mm
- Maximum cutting thickness: 20mm
- Severance thickness: 30mm by hand cutting
Package Includes
- Cebora iQC 45M plasma power source, Art. 612
- CP45C MAR hand torch with 4m flexible coaxial cable
- 4m earth lead
Specifications
- Power supply: 240V single phase
- Output range: 5–45A
- Duty cycle: 45A at 45%, 35A at 60% and 30A at 100%
- Air requirement: 65L/min at 3.5 bar
- Protection class: IP23S
- Dimensions: 151 x 506 x 355mm
- Power source weight: 8kg
| Brand | Cebora |
|---|---|
| Weight | 23.000000 |
| Hide Request Quote Form | No |
| Power Supply | 240V |
| Supply Plug | 15 Amp |
| Dimensions | 286mm x 590mm x 406 mm |
| Duty Cycle | 35% @ 50A; 60% @ 42A; 100% @ 33A |
| Min Amperage | 33 |
| Max Amperage | 50 |
| Protection Class | IP23S |
